Zebra Method Detector Float Glass Optical Deformation Angle Measuring Machine Glass Zebra Angle Testing Instrument

Product Categories
DONGGUAN LONROY EQUIPMENT CO LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

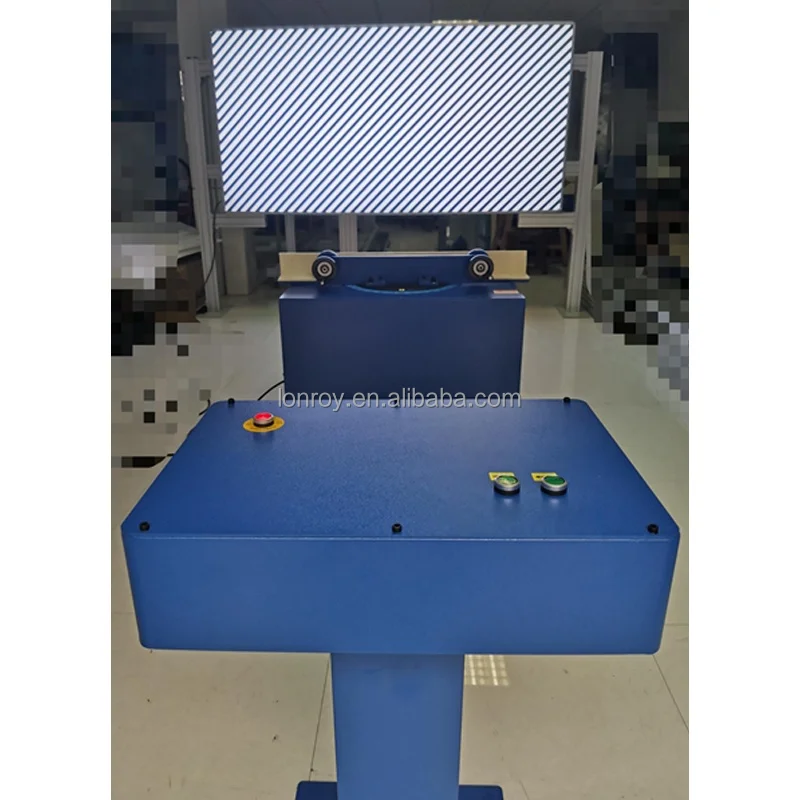

Zebra Method Detector Float Glass Optical Deformation Angle Measuring Machine Glass Zebra Angle Testing Instrument

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Zebra Stripe Width : 25mm

Zebra Curtain Size : 2400 × 1200mm

Backlit LED Lighting : 300W

Voltage : 220 V

Protection Class : Ip56

Dial Precision : 1°

Rotation Mode : Electric

Angle Observation Method : Observation through the turntable dial

Additional Equipment : Telescope

Observation Distance : 9 meters

Standard Compliance : GB11614-2009

Turntable Type : Graduated

Lighting Type : LED

Screen Illumination : Uniform

Control Method : Button-operated

Contact Now

Zebra Method Detector Float Glass Optical Deformation Angle Measuring Machine Glass Zebra Angle Testing Instrument

Product Description

Introduction

The Zebra Method Detector is designed and manufactured in accordance with the technical requirements of the national standard GB11614-2009 "Flat Glass". It is a testing instrument used to measure the optical deformation angle (Zebra Angle) of float glass. It is an essential quality inspection equipment for float glass production enterprises and is also applicable to various glass quality inspection institutions at all levels.

Principle and Block Diagram

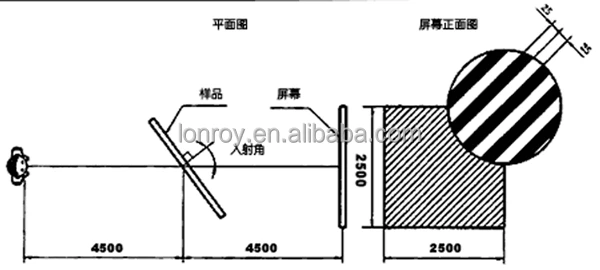

The principle illustration of the Zebra Method Detector is shown in the figure. It consists of a Zebra light box screen, a graduated turntable, and a control cabinet. The lighting box evenly illuminates the Zebra screen. The observer stands 9 meters away from the screen and controls the rotation of the turntable through the buttons on the control console. The glass sample is placed upright on the glass support and the deformation of the Zebra stripes is observed through the glass sample. The critical angle of the Zebra stripe deformation (the angle between the parallel line of the glass and the Zebra screen) is measured. At this time, the angle displayed on the turntable is the optical deformation angle of this glass sample.

Zebra Method Detector Float Glass Optical Deformation Angle Measuring Machine Glass Zebra Angle Testing Instrument

Zebra Method Detector Float Glass Optical Deformation Angle Measuring Machine Glass Zebra Angle Testing Instrument

Technical Specification

Backlit LED Lighting

300W

Zebra Curtain Size

2400 × 1200mm

Zebra Stripe Width

25mm

Dial Precision

1°

Rotation Mode of the Turntable

Electric

Angle Observation Method

Observation through the turntable dial

Additional Equipment

The equipment comes with a telescope

Zebra Method Detector Float Glass Optical Deformation Angle Measuring Machine Glass Zebra Angle Testing InstrumentZebra Method Detector Float Glass Optical Deformation Angle Measuring Machine Glass Zebra Angle Testing Instrument
