IEC60065 12mm test Finger Probe with 75N Thrust

Name: IEC60065 12mm test Finger Probe with 75N Thrust
Brand: Lonroy
Price: 1 USD

Wholesale IEC60065 12mm test Finger Probe with 75N Thrust from china suppliers

Brand Name : Lonroy

Place of Origin : China

Model Number : LR-G30

MOQ : 1

Price : Negotaible

Finger Length : 80mm

Finger Diameter : 12mm

Dam-board Diameter : 50mm

Test Force : 15N

Baffle Diameter : 50mm

Baffle Length : 100mm

Thrust Range : 5N ~ 75N

Standard : IEC61032, IEC60065, IEC60335-1, IEC60884-1

Direct Diameter : 12mm

Direct Length : 80mm

Custom Thrust 1 : 10N ~ 50N

Custom Thrust 2 : 10N ~ 75N

Custom Thrust 3 : 5N ~ 30N

Nodular Length : 80mm

Nodular Diameter : 12mm

Certification : ISO ASTM CE

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

IEC60065 12mm test finger probe with 75N thrust

1. This product is reference to the standards IEC60132 .
2. It is used to test the electric of the household electrical, instead of fingers to touch the electronic testing.

IEC60065 12mm test finger probe with 75N thrust

Nodular Finger Length	80mm
Nodular Finger Diameter	12mm
Dam-board Diameter	50mm
Test Force	15N
Standard	IEC61032 IEC60065 IEC60335-1 IEC60884-1

Product overview: In line with IEC61032 Figure 7 test kit 11, GB/T16842 test kit 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, GB4706 and other standards.

It is used to check the mechanical strength of the holes in the housing or the baffle inside the housing.

Can be customized with 10 ~ 50N thrust

Can be customized with 10 ~ 75N thrust

Can be customized with 5 ~ 30N thrust

Technical parameters:

Direct diameter: 12 mm

Direct length: 80mm

Baffle diameter: 50mm

Baffle length: 100mm

Product Tags:

IEC60065 test finger probe

12mm test probe with thrust

75N thrust test finger

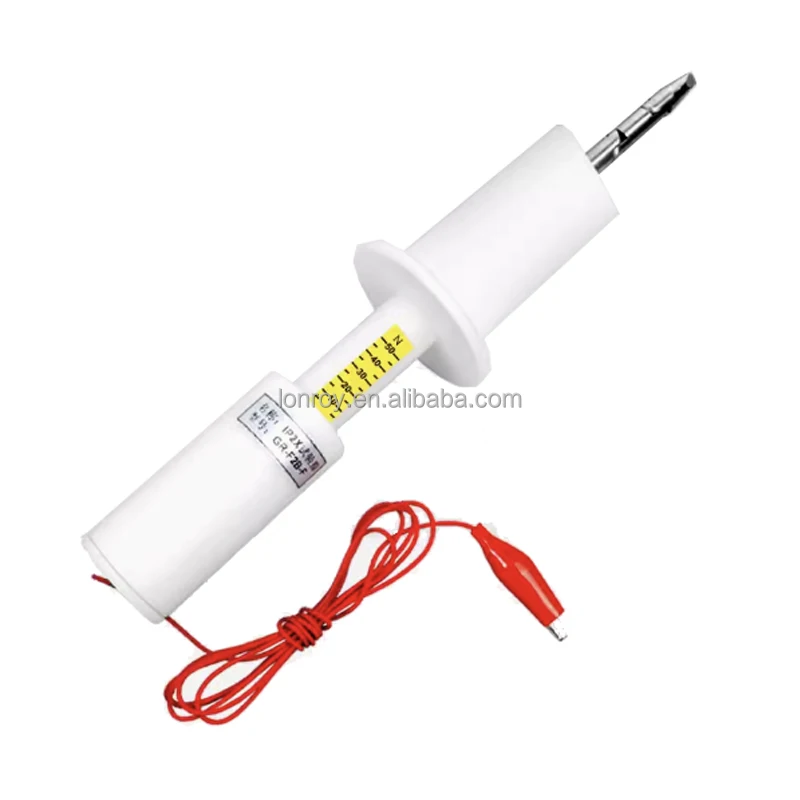

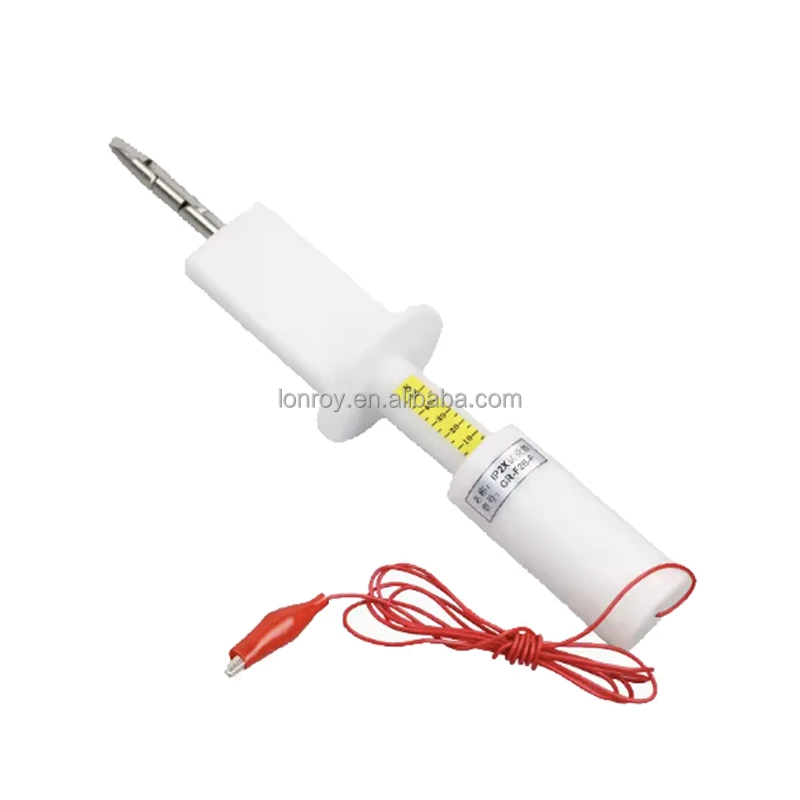

IEC60065 12mm test Finger Probe with 75N Thrust Images
