ISO 13433 Geotextile Drop Cone Puncture Tester with 500mm Test Height and 150mm Fixture Inner Diameter for Dynamic Puncture Resistance Testing

Name: ISO 13433 Geotextile Drop Cone Puncture Tester with 500mm Test Height and 150mm Fixture Inner Diameter for Dynamic Puncture Resistance Testing
Brand: Lonroy
Price: 1 USD

Wholesale ISO 13433 Geotextile Drop Cone Puncture Tester with 500mm Test Height and 150mm Fixture Inner Diameter for Dynamic Puncture Resistance Testing from china suppliers

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Voltage : 220 V

Protection Class : Ip56

Test height : 500 ± 2mm

Clamping diameter : 150 ± 0.5 mm

Drop cone angle : 45°

Drop cone diameter : 50 mm

Drop cone mass : 1000g ± 5g

Caliper range : 5 - 50mm

Caliper accuracy : ± 0.1mm

Caliper weight : 600g ± 5g

Dimensions : 480 × 560 × 1540 mm

Weight : 55 kg

Applicable standard : GB/T17630-1998, ISO1343

Test force : 180KN

Material : Steel cone

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

ISO 13433 Geotextile Drop Cone Puncture Tester Geotextiles Dynamic Puncture Testing Equipment

Product Description

Scope of Application

This method is used to determine the resistance of geotextiles and their related products to being penetrated by steel cones falling from a fixed height. The penetration depth of the falling cone indicates the degree of damage to the product caused by the sharp stones falling onto the surface of the geotextile.

Applicable Standards

GB/T17630-1998, ISO1343

ISO 13433 Geotextile Drop Cone Puncture Tester Geotextiles Dynamic Puncture Testing Equipment

Technical Specification

Test height	500 ± 2mm
Clamping device inner diameter	150 ± 0.5 mm
Drop cone	Cone angle 45°, maximum diameter 50 mm, total mass 1000g ± 5g
Caliper	Measuring range 5 - 50mm (accuracy: ± 0.1mm), weight 600g ± 5g
Dimensions	480 × 560 × 1540 mm (Length × Width × Height)
Weight	55 kg

Product Tags:

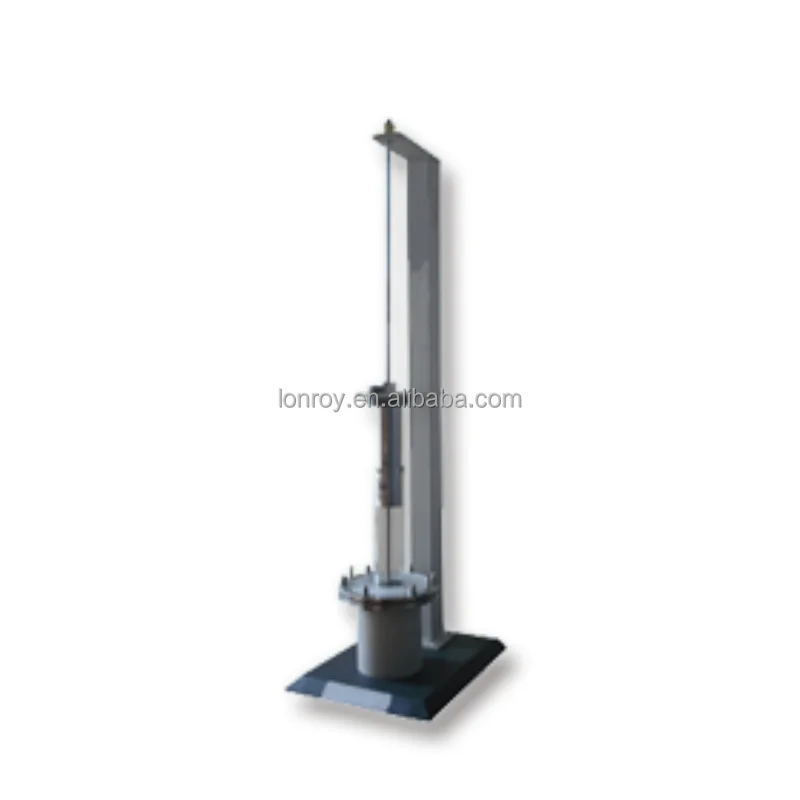

ISO 13433 Geotextile Drop Cone Puncture Tester with 500mm Test Height and 150mm Fixture Inner Diameter for Dynamic Puncture Resistance Testing Images
